V6 262 Mixflow Type Pump Set
3 – 12.5 HP · 3 – 10 stages
A mixed-flow V6 pump set for moving higher water volume at moderate head. It is a practical general-purpose choice for borewell irrigation.
V6
Submersible pump sets, motors, and pump assemblies
Twenty-three models arranged in three practical product families.
Pump Sets (14)
Complete V6 pump and motor assemblies for borewell installation.
V6 262 Heavy Mixflow Type Pump Set
3 – 15 HP · 3 – 12 stages
The heavy 262 mixed-flow set extends the HP and stage range for longer running duty. It keeps the high-volume, moderate-head character of the 262 series.
V6 Stainless Steel 50 Feet Pump Set
5 – 10 HP · 4 – 15 stages
A stainless steel V6 pump set in the 50 Feet head class. Stainless construction supports service in water where corrosion resistance matters.
V6 K-Type Pump Set
3 – 12.5 HP · 3 – 16 stages
A V6 K-Type set designed for higher head per stage and controlled discharge. It suits deeper bores where lift matters more than water volume.
V6 Heavy Series K-Type Submersible Pump Set
3 – 10 HP · 3 – 20 stages
A heavy K-Type V6 set with thicker sections and a stage range up to 20. It is intended for higher lift and longer running periods.
V6 NENO Mixflow Pump Set
3 – 12.5 HP · 2 – 8 stages
The NENO mixed-flow set uses a shorter stage stack for higher discharge per stage. Its compact length suits shallower bores with high-volume demand.
V6 NENO Heavy Mixflow Pump Set
3 – 10 HP · 2 – 6 stages
A heavy-build NENO set for high-volume duty from a short stage stack. Thicker sections support longer running use.
V6 50 Feet DRS Pump Sets
5 – 10 HP · 4 – 15 stages
A DRS variant within the V6 50 Feet pump-set family. It provides a defined 5 to 10 HP and 4 to 15 stage selection range.
Photograph coming soon
V6 273 Light Model
3 – 10 HP · 2 – 6 stages
A light-build V6 pump set using the separate 273 hydraulic series. It covers a compact 2 to 6 stage range.
Photograph coming soon
V6 273 Heavy Model
3 – 15 HP · 2 – 10 stages
A heavy-build V6 pump set in the separate 273 hydraulic series. The range extends to 15 HP and 10 stages.
V6 K-Type AR Series
3 – 7.5 HP · 3 – 14 stages
A K-Type AR pump set using an aluminium rotor with copper winding. It retains K-Type higher-head duty in a lower-cost build.
V6 50 Feet CI/SS Jacket SS410 Impeller Pump Set
5 – 12.5 HP · 4 – 15 stages
A 50 Feet class V6 set with CI/SS jacket construction and SS410 impellers. The impeller material helps resist abrasion in sandy and silty water.
V6 Neno Type AR
5 – 7.5 HP · 3 – 5 stages
A short-stack NENO pump set with an aluminium rotor and copper winding. It is arranged for high discharge per stage in a lower-cost build.
V6 262 Type AR
5 – 7.5 HP · 4 – 8 stages
A 262 mixed-flow AR set with an aluminium rotor and copper winding. It supports high-volume, moderate-head borewell duty in a lower-cost build.
Motors (2)
V6 motors for replacement, repair, and custom assembly.
V6 Full SS Motor
3 – 12.5 HP · Stage range on request
A full stainless steel V6 submersible motor from 3 to 12.5 HP, with core lengths from 110 to 280 mm. Suited to corrosive or saline borewell water.
V6 Motor with Carbon Bearing
3 – 12.5 HP · Stage range on request
A V6 submersible motor with carbon bearings from 3 to 12.5 HP, with core lengths from 120 to 280 mm. Suited to sandy borewells where grit tolerance matters.
Pump Only (7)
Wet-end assemblies without motors for service and custom builds.

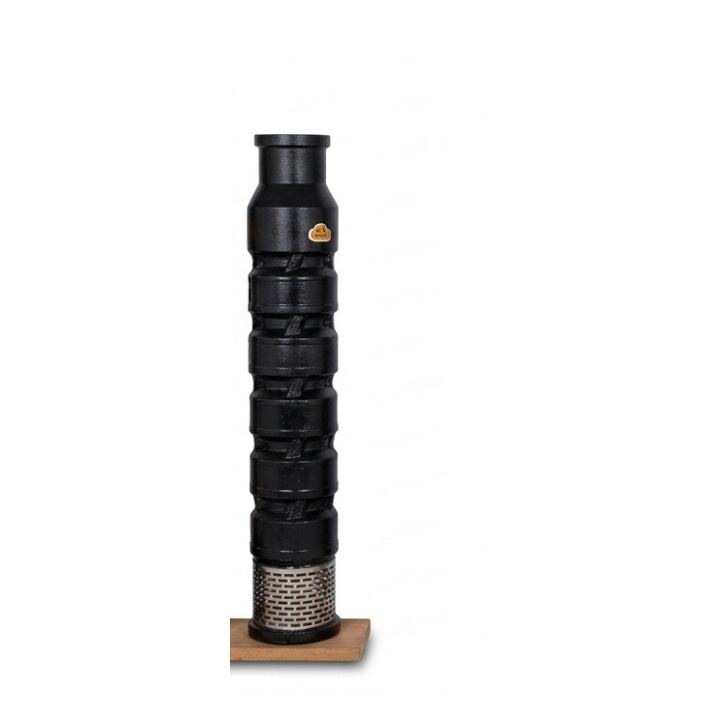

V6 Mixflow Pump Only
HP on request · 3 – 10 stages
A standard mixed-flow wet end supplied without a motor. It moves higher water volume at moderate head for replacement and custom assembly work.
V6 Heavy Mixflow Pump Only
HP on request · Stage range on request
A heavy mixed-flow wet end supplied without a motor. It provides thicker-section construction for replacement and custom builds.
V6 NENO Pump Only
HP on request · 2 – 8 stages
A short-stack NENO wet end supplied without a motor. It is intended for compact, high-volume replacement and custom assembly work.
Photograph coming soon
V6 273 Only Pump
HP on request · 2 – 10 stages
A 273-series wet end supplied without a motor. It supports replacement work across a 2 to 10 stage range.
V6 50 Feet SS Pump Only
5 – 10 HP · 4 – 15 stages
A stainless steel 50 Feet class wet end supplied without a motor. It supports corrosion-resistant replacement and custom assembly work.
V6 K-Type Pump Only (40 MM)
HP on request · 3 – 20 stages
A 40 mm K-Type wet end supplied without a motor. It provides higher head per stage for deep-bore replacement and custom builds.
V6 K-Type Pump Only (45 MM)
HP on request · 3 – 12 stages
A 45 mm K-Type wet end supplied without a motor. It supports higher-head replacement and custom V6 assembly work.
